$7,195.00
01-23-61-063-BL
Black
$7,195.00
01-23-57-057-BL

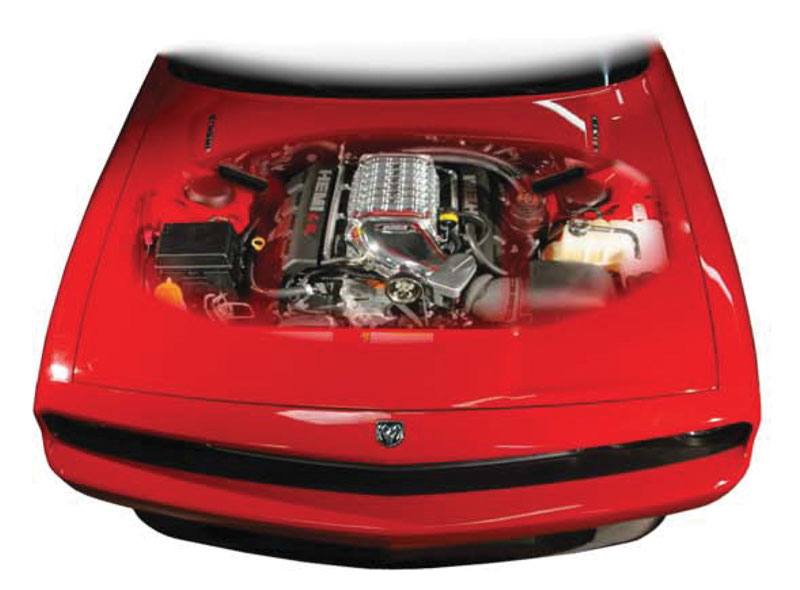

Magnacharger TVS2300 w/Trinity Handheld Programmer
Dodge Challenger R/T          2008-2010 5.7L Hemi V8
Dodge Charger R/T               2006-2010 5.7L Hemi V8
Chrysler 300C                        2005-2010 5.7L Hemi V8
Black
Unleash the true potential of your Hellcat with the Magnuson Vengeance TVS2650 Supercharger System!
Launching early 2018, the Vengeance TVS 2650 for the 2015+ Dodge Hellcat 6.2L V8. This OE replacement supercharger system is designed to
deliver maximum performance while retaining factory-like drivability and reliability!


Inside of the supercharger manifold, the newest charge air cooler is 10% larger than the OE keeping your Intake Air Temperatures colder than
competitors and provides consistent and repeatable performance! We have also retained the OE electronic by-pass valve to ensure the ECU
remains in complete control of the desired boost levels.


One of the most impressive aspects of this latest generation Magnuson supercharger system is that it can outflow the competition even though
their supercharger displacement is significantly larger. In addition, it requires less horse power to spin the Vengeance TVS 2650 and its
discharge temperatures are significantly lower allowing the supercharger to make over 1000 HP with the stock fuel system and 1200-1400+
HP when supported with upgraded fuel system and powertrain modifications!

Hellcat Specifications
TVS 2650 hybrid-roots supercharger
Stage I or Stage II kits available
Stage II TVS 2650s utilize a patent-pending SC housing to deliver 650 CFM higher flow for maximum horsepower levels
100% complete bolt-on system
No hood modifications required
Bazooka-Tube jackshaft system
High flow intercooler system
Massive 1” (-16AN) intercooler coolant fittings
105mm throttle body inlet
Anodized aluminum fuel rails support over 1500HP
Compatible with factory fuel injectors
Interchangeable rear cog belt/pulleys for up to 27% overdrive
Accepts stock electronic bypass valve and stock throttle body
High thermal efficiency
High helix four-lobe rotors

Recommended components for 1000+ HP
1000+ cc/min injectors
Upgraded fuel pumps/lines
105mm throttle body
Magnuson Crank Pulley Pin Kit (part# 31-26-61-102) for 2016 and earlier crankshafts
Magnuson 27% overdrive cog pulley set
Magnuson Stage II TVS 2650 Specifications
Operating range to over 25,000 RPM
56% higher flow than TVS 2300
Equivalent flow to 4.0L screw type superchargers

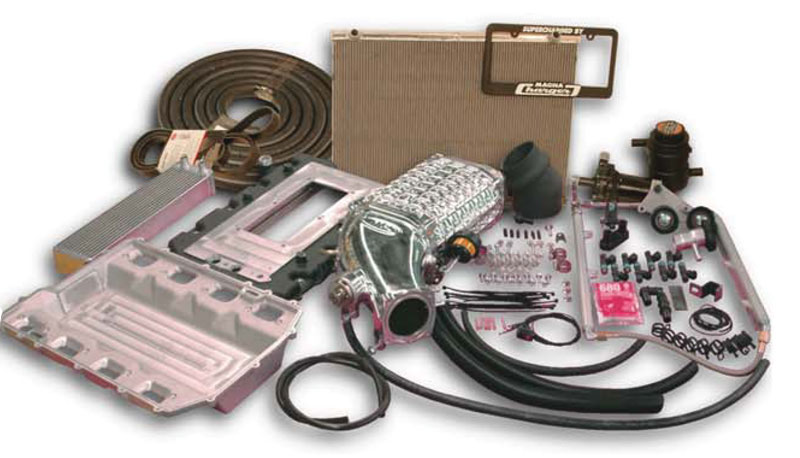

Included Components
TVS 2650 Supercharger retaining OE electronic bypass valve
High Performance Liquid-to-Air Intercooler
Extruded anodized aluminum high flow fuel rails
Front and rear fuel crossovers
All necessary fittings, lines, belts, and hardware required
105mm throttle body inlet with adapter for stock throttle body

Warranty
3 year/36,000 mile supercharger parts warranty. See warranty page for details.

Maintenance
Sealed supercharger rotor assembly requires no maintenance or oil change

Emissions Status
CARB EO# Pending

Tools Required
Metric wrench set
1/4in. - 3/8in. and 1/2in. drive metric socket set (Standard and Deep)
3/8in.and 1/2in. drive inch-pound and foot-pound torque wrenches
Belt tensioner wrench
Phillips and flat-head screwdrivers
1/2in. breaker bar
Fuel line quick disconnect tool (included in kit)
Drain pan
Hose cutters
Hose clamp pliers
Safety glasses
Torque angle meter
Plastic hammer
Compressed air
Blow gun air tool
Metric Allen socket set 3/8in. drive
Shop vacuum cleaner
Blue Loctite 242
Right Angle drill for pinning crank pulley (when required)
Helpful Tool: Air or electric impact wrench

Install Time
8-10 Hours
6.1L HEMI
5.7L HEMI

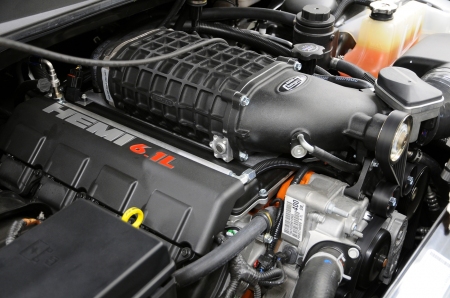

Magnacharger TVS2300 w/Trinity Handheld Programmer
Dodge Challenger SRT8        2008-2010 6.1L Hemi V8
Dodge Charger SRT8             2006-2010 6.1L Hemi V8
Dodge Magnum SRT8           2006-2010 6.1L Hemi V8
Chrysler 300C SRT8             2005-2010 6.1L Hemi V8
