Black
$4,995.00

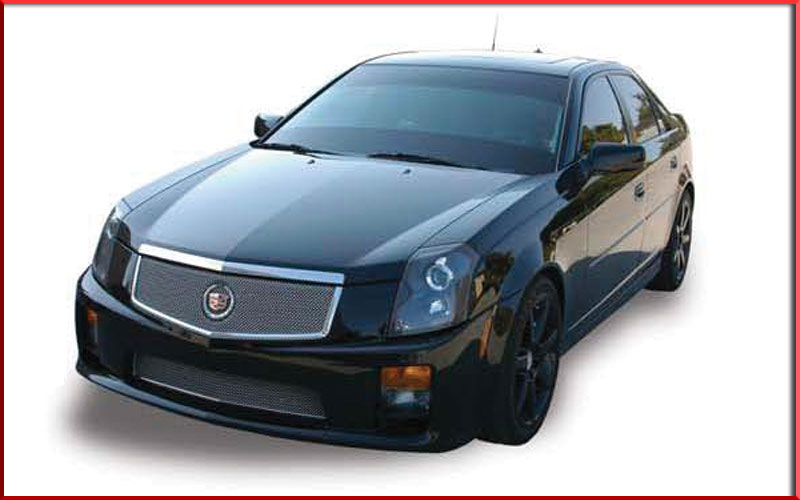

2004 - 2005 Cadillac CTS-V
LS2 Engine No Tuming
Intercooled
Magnacharger - Magnuson TVS2300 Heartbeat Supercharger System
CADILLAC CTS-V LT4 6.2L V8 Heartbeat Supercharger System (NO CALIBRATION)
01-23-62-193-BL
Black
$7,995.00
01-12-60-120-SL
The most powerful underhood CTS-V LT4 Supercharger on the market
Magnuson is proud to announce our under-the-hood Heartbeat supercharger system is now available for the
2016 - 2019 Cadillac CTS-V. The new Heartbeat Supercharger for the Cadillac CTS-V fits completely under
hood, retains the factory strut tower brace and comes with everything necessary to swap the factory LT4 R1740
supercharger with the larger, high performance Magnuson TVS2300. Expect 50-60 RWHP gains from the
Supercharger swap on an otherwise stock vehicle and deliver up to 1000 HP with the appropriate pulleys, fuel
system, throttle body and custom tuning (not provided by Magnuson). There is also no need to remove your
front fascia as the higher capacity intercooler core utilizes the factory front end heat exchanger, pump and lines.

Run cooler with the most advanced intercooler system available
Heat soak can be a problem in underhood supercharger systems, robbing more than half the power gain in the
summer heat or after a few dragstrip runs. Heartbeat features integrated intercoolers derived from the same
technology used in Formula 1 and NASCAR heat exchangers. Unlike other underhood supercharger systems,
customers report low IATs and consistent performance all day long.

What our customers are saying
"The new under hood Magnuson Heartbeat supercharger is engineering excellence. The placement of the
intercoolers and runner design nets maximum efficiency. This unit is far superior to ANY under hood, positive
displacement supercharger currently on the market". - Steve E, Owner of Davenport Motorsports






Features
• Magnuson TVS2300 Hybrid-roots supercharger featuring Eaton TVS® Technology
• Delivers a proven increase in real world “under the curve” power
• High thermal efficiency
• 2.4 pressure ratio capability
• High helix four-lobe rotors with 160 degree twist
• Redesigned inlet and outlet ports
• Improved air-handling characteristics
• High flow cooling system
• Multiple throttle body options
• Multiple drive cartridge lengths for custom applications
• Complete illustrated installation instructions


Supercharger Technology
Magnuson TVS2300 supercharger utilizing Eaton TVS® Technology
2300cc rotors are 32% bigger than the stock 1740cc rotors, tunable for 30%+ power gains at high engine speeds
(requires custom tune not provided by Magnuson).
Fully integrated supercharger housing and intake manifold for factory-look fit and finish
Integrated vacuum bypass valve
OEM validated bearings and seal technology
Intercooler System
Twin dual-pass charge-air-coolers utilize Formula-1 racing thermal-control technology
Back-to-back testing verifies the intercooler system is superior
Quick-connect fittings for easier installation
Upgrade Options
Upgradable throttle body adaptor available for large throttle bodies
Drive pulley options available for high-boost applications

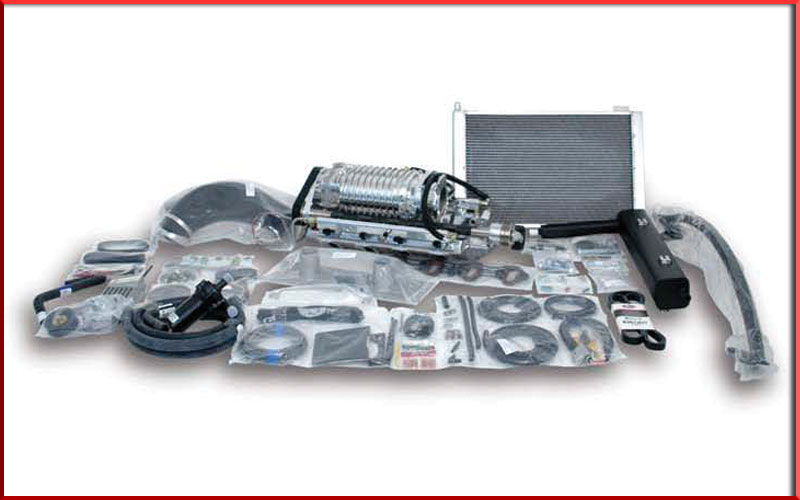

Included Components
Magnuson TVS2300 Heartbeat Supercharger with integral bypass valve
Patented cast-aluminum high-velocity-port intake manifold
Twin dual-pass charge-air-coolers utilize Formula-1 racing thermal-control technology
All necessary fittings, lines, belts, and hardware required
Warranty
3 year/36k mile limited warranty. See warranty page for further information.
Maintenance
Sealed supercharger rotor assembly requires no maintenance or oil change
Emissions Status
N/A
Tools Required
Metric wrench set
1/4in. - 3/8in. and 1/2in. drive metric socket set (Standard and Deep)
3/8in.and 1/2in. drive foot-pound and inch-pound torque wrenches
Belt tensioner wrench
Phillips and flat-head screwdrivers
1/2in. breaker bar
Fuel line quick disconnect tool (included in kit)
Drain pan
Hose cutters
Hose clamp pliers
Safety glasses
Torque wrench
Compressed air
Blow gun air tool
Metric Allen socket set 3/8in. drive
Shop vacuum cleaner
Blue Loctite 242
Average Installation Time
10-12 Hours
Black
$5,995.00
01-23-62-158-BL
Blacl
$7,995.00
Magnacharger - Superchargers
2006 - 2007 Cadillac CTS-V
LS6 Engine, No Tuning
Intercooled
01-12-60-121-SL
