V-7
Superchargers

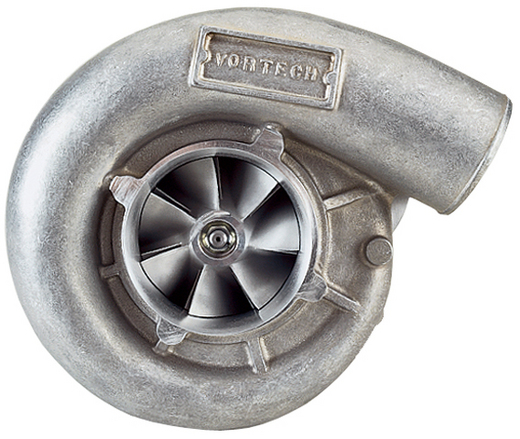

Vortech V-7 JT Supercharger
Performance Specs

Max Speed:
60000 RPM
Max Boost:
27 PSI
Max Flow:
1450 CFM
Max Power:
1000 HP
Peak Efficiency:
75%

Performance specs apply to both heavy duty and standard superchargers.

Dimensions

Discharge OD:
3.0"
Inlet OD:
4.0"
Discharge ID:
2.64"
Inducer Diameter:
3.486"

Specifically designed for the Ford Mustang 4.6L modular racing application.
Superchargers exceeding 6 PSI require a Vortech standard bypass valve or a Vortech Maxflow racing bypass
valve.

Superchargers exceeding 10 PSI require a Vortech Maxflow Mondo or Maxflow racing bypass valve.

Cog belt drive systems are recommended for all heavy duty superchargers

Warranty Information:

No Warranty

No warranty on race/heavy-duty superchargers.

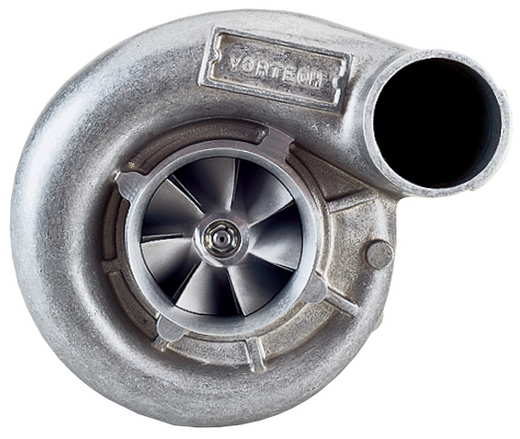

Vortech V-7 YSi Supercharger
VORTECH 2A159-010
Vortech Centrifugal Superchargers
V-7 JT / Straight Discharge / Heavy Duty / CCW / Satin or Polished
Satin - Polished
$3108.88
VORTECH 2A159-018
Polished
$3244.88
Performance Specs

Max Speed:
65000 RPM
Max Boost:
30 PSI
Max Flow:
1600 CFM
Max Power:
1200 HP
Peak Efficiency:
78%

Performance specs apply to units equipped with standard & heavy duty gearcase.

Dimensions

Discharge OD:
3.0"
Inlet OD:
4.0"
Discharge ID:
2.64"
Inducer Diameter:
3.7"

"Large blower" performance in a smaller package that fits most existing Vortech bracketry

  • Available with straight or curved discharge in clockwise rotation only
  • Part numbers below do not include drive pulley
  • 9.162" Wide, 10.490" Tall, 6.126" Deep (not including input shaft)

Superchargers exceeding 6 PSI require a Vortech standard bypass valve or a Vortech Maxflow racing bypass
valve.

Superchargers exceeding 10 PSI require a Vortech Maxflow Mondo or Maxflow racing bypass valve.

Cog belt drive systems are recommended for all heavy duty superchargers

Warranty Information:

No Warranty

No warranty on race/heavy-duty superchargers.
VORTECH 2A158-060
Vortech Centrifugal Superchargers
V-7 YSi / Straight Discharge / Heavy Duty / Satin or Polished
Satin - Polished
$3269.88
VORTECH 2A158-068
Polished
$3517.88
VORTECH 2A158-070
Vortech Centrifugal Superchargers
V-7 YSi / Curved Discharge / Heavy Duty / Satin or Polished
Satin - Polished
$3269.88
VORTECH 2A158-078
Polished
$3517.88
VORTECH 2A159-050
Vortech Centrifugal Superchargers
V-7 YSi / Straight Discharge / Heavy Duty / CCW / Satin or Polished
Satin - Polished
$3269.88
VORTECH 2A159-058
Polished
$3517.88
