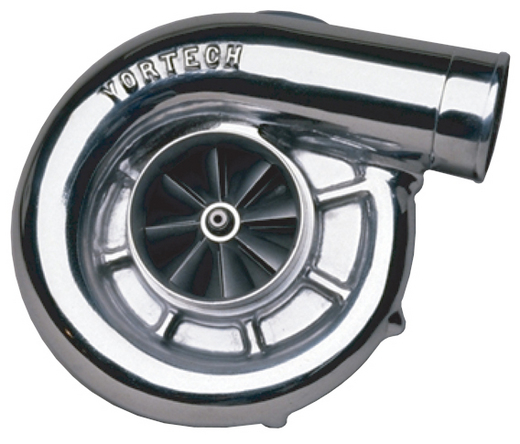

Vortech V-1 SCi Supercharger
Performance Specs
Max Speed:
58000 RPM
Max Boost:
21 PSI
Max Flow:
1050 CFM
Max Power:
725 HP
Peak Efficiency:
75%
Performance specs apply to units equipped with heavy duty gearcase.
Dimensions
Discharge OD:
2.75"
Inlet OD:
3.5"
Discharge ID:
2.38"
Inducer Diameter:
3.1"
Superchargers exceeding 6 PSI require a Vortech standard bypass valve or a Vortech Maxflow racing bypass
valve.
Superchargers exceeding 10 PSI require a Vortech Maxflow Mondo or Maxflow racing bypass valve.
Cog belt drive systems are recommended for all heavy duty superchargers
Warranty Information:
No Warranty
No warranty on race/heavy-duty superchargers.
Max Speed:
58000 RPM
Max Boost:
21 PSI
Max Flow:
1050 CFM
Max Power:
725 HP
Peak Efficiency:
75%
Performance specs apply to units equipped with heavy duty gearcase.
Dimensions
Discharge OD:
2.75"
Inlet OD:
3.5"
Discharge ID:
2.38"
Inducer Diameter:
3.1"
- Straight cut spur gear
- Available with straight or curved discharge
Superchargers exceeding 6 PSI require a Vortech standard bypass valve or a Vortech Maxflow racing bypass
valve.
Superchargers exceeding 10 PSI require a Vortech Maxflow Mondo or Maxflow racing bypass valve.
Cog belt drive systems are recommended for all heavy duty superchargers
Warranty Information:
No Warranty
No warranty on race/heavy-duty superchargers.
Vortech V-1 Ti Supercharger
Vortech V-1 Si Supercharger
| V-1 |
| Superchargers |
VORTECH 2A128-300
Vortech Centrifugal Superchargers
V-1 SCi / Curved Discharge / Heavy Duty / Satin or Polished
V-1 SCi / Curved Discharge / Heavy Duty / Satin or Polished
| $2496.88 |
VORTECH 2A128-308
Polished
Polished
| $2629.88 |
VORTECH 2A128-310
Vortech Centrifugal Superchargers
V-1 SCi / Straight Discharge / Heavy Duty / Satin or Polished
V-1 SCi / Straight Discharge / Heavy Duty / Satin or Polished
| $2496.88 |
VORTECH 2A128-318
Polished
Polished
| $2629.88 |
VORTECH 2A129-070
Vortech Centrifugal Superchargers
V-1 SCi / Straight Discharge / Heavy Duty, CCW / Satin or Polished
V-1 SCi / Straight Discharge / Heavy Duty, CCW / Satin or Polished
| $2496.88 |
VORTECH 2A129-078
Polished
Polished
| $2629.88 |
Performance Specs
Max Speed:
55000 RPM
Max Boost:
26 PSI
Max Flow:
1400 CFM
Max Power:
950 HP
Peak Efficiency:
75%
Performance specs apply to units equipped with heavy duty gearcase.
Dimensions
Discharge OD:
2.75"
Inlet OD:
3.75"
Discharge ID:
2.38"
Inducer Diameter:
3.51"
valve.
Superchargers exceeding 10 PSI require a Vortech Maxflow Mondo or Maxflow racing bypass valve.
Cog belt drive systems are recommended for all heavy duty superchargers
Warranty Information:
No Warranty
No warranty on race/heavy-duty superchargers.
Max Speed:
55000 RPM
Max Boost:
26 PSI
Max Flow:
1400 CFM
Max Power:
950 HP
Peak Efficiency:
75%
Performance specs apply to units equipped with heavy duty gearcase.
Dimensions
Discharge OD:
2.75"
Inlet OD:
3.75"
Discharge ID:
2.38"
Inducer Diameter:
3.51"
- Straight cut spur gear
- Available with straight or curved discharge and clockwise or counterclockwise rotation
- Part numbers below do not include drive pulley
- 8.75" Wide, 9.44" Tall, 5.52" Deep (not including input shaft)
valve.
Superchargers exceeding 10 PSI require a Vortech Maxflow Mondo or Maxflow racing bypass valve.
Cog belt drive systems are recommended for all heavy duty superchargers
Warranty Information:
No Warranty
No warranty on race/heavy-duty superchargers.
Performance Specs
Max Speed:
55000 RPM
Max Boost:
26 PSI
Max Flow:
1150 CFM
Max Power:
775 HP
Peak Efficiency:
78%
Performance specs apply to units equipped with heavy duty gearcase.
Dimensions
Discharge OD:
2.75"
Inlet OD:
3.5"
Discharge ID:
2.38"
Inducer Diameter:
3.1"
Ideal for latest generation of improved breathing, high-power street and strip engines. Vastly improved flow
and efficiency at high boost levels, providing completely new levels of power gain.
Superchargers exceeding 6 PSI require a Vortech standard bypass valve or a Vortech Maxflow racing bypass
valve.
Superchargers exceeding 10 PSI require a Vortech Maxflow Mondo or Maxflow racing bypass valve.
Cog belt drive systems are recommended for all heavy duty superchargers
Warranty Information:
No Warranty
No warranty on race/heavy-duty superchargers.
Max Speed:
55000 RPM
Max Boost:
26 PSI
Max Flow:
1150 CFM
Max Power:
775 HP
Peak Efficiency:
78%
Performance specs apply to units equipped with heavy duty gearcase.
Dimensions
Discharge OD:
2.75"
Inlet OD:
3.5"
Discharge ID:
2.38"
Inducer Diameter:
3.1"
Ideal for latest generation of improved breathing, high-power street and strip engines. Vastly improved flow
and efficiency at high boost levels, providing completely new levels of power gain.
Superchargers exceeding 6 PSI require a Vortech standard bypass valve or a Vortech Maxflow racing bypass
valve.
Superchargers exceeding 10 PSI require a Vortech Maxflow Mondo or Maxflow racing bypass valve.
Cog belt drive systems are recommended for all heavy duty superchargers
Warranty Information:
No Warranty
No warranty on race/heavy-duty superchargers.
VORTECH 2A138-140
Vortech Centrifugal Superchargerss
V-1 Ti / Curved Discharge / Heavy Duty / Satin or Polished
V-1 Ti / Curved Discharge / Heavy Duty / Satin or Polished
| $2986.88 |
VORTECH 2A138-148
Polished
Polished
| $3119.88 |
VORTECH 2A128-190
Vortech Centrifugal Superchargerss
V-1 Si / Heavy-Duty / Clockwise / Curved Discharge/ Satin or Polished
V-1 Si / Heavy-Duty / Clockwise / Curved Discharge/ Satin or Polished
| $2496.88 |
VORTECH 2A128-198
Polished
Polished
| $2629.88 |
VORTECH 2A128-200
Vortech Centrifugal Superchargers
V-1 Si / Heavy-Duty / Clockwise / Straight Discharge/ Satin or Polished
V-1 Si / Heavy-Duty / Clockwise / Straight Discharge/ Satin or Polished
| $2496.88 |
VORTECH 2A128-208
Polished
Polished
| $2629.88 |
VORTECH 2A129-040
Vortech Centrifugal Superchargers
V-1 Si / Heavy-Duty / Counter-Clockwise / Straight Discharge/ Satin or Polished
V-1 Si / Heavy-Duty / Counter-Clockwise / Straight Discharge/ Satin or Polished
| $2827.88 |
VORTECH 2A129-048
Polished
Polished
| $2629.88 |
