$6,950.00
Wrinkle
Red
$7,500.00
01-23-60-171-RD
Limited Edition
Magnacharger 2010 - 2014 Chevrolet Camaro SS
TVS 2300
6M with LS3
Details
01-23-60-171-BL
Black

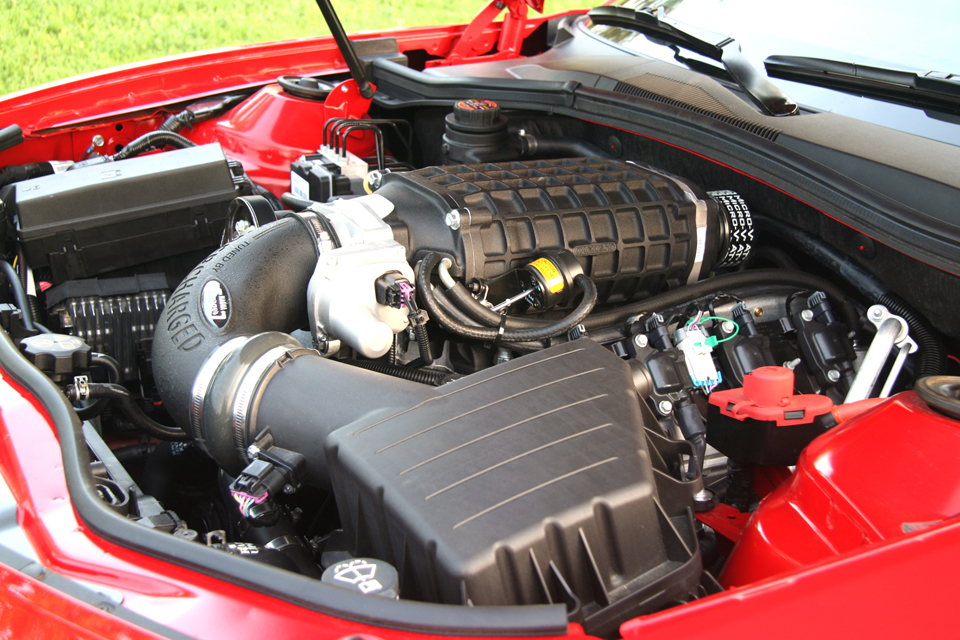

Boost the power output of your 2016+ Chevrolet Camaro SS 6.2L LT1 while retaining factory-like drivability, fuel economy, and reliability with Magnuson’s TVS2300
Supercharger Kit. This kit delivers power gains of 550+ horsepower and 510+ foot-pounds of torque at the rear wheels @ 6 psi. Besides peak horsepower and torque
this supercharger offers significantly enhanced "under the curve" power gains delivering near instantaneous boost and torque upon demand that really puts you back in
your seat.

Inside of the supercharger manifold, a large liquid-to-air intercooler keeps your Intake Air Temperatures in check and provides consistent and repeatable performance.
Combine that with the front-mounted heat exchanger, electric water pump, and intercooler coolant reservoir and you have a supercharger system that has IATs that are
typically only 20-40 degrees (Fahrenheit) over the ambient temperature. Maximizing your efficiency during cruising is the job of the supercharger’s integrated bypass
valve. This vacuum operated system allows air to bypass the supercharger and the rotors to “free-spin" under light engine loads. During this situation the parasitic loss
of the supercharger system is essentially negated taking less than one-third of a horsepower to turn the rotors. This bypass valve also allows your supercharged Camaro
SS to maintain stock-like drivability and fuel economy - giving you a package that delivers power without compromise.

Down to the smallest part, our Magnuson Supercharger line of bolt-on supercharger systems are engineered as a complete package. The supercharger, supercharger
intake manifold, inlet, pulley, fuel injectors, fuel rails, front & rear fuel crossovers, and intercooler come pre-assembled to make installation simple and easy while the
accessory box is organized into individual sub-assemblies to help ensure that you don’t lose track of parts during your install. All of the hardware needed for a full and
complete install is also included so you won’t be running to the local parts store in the middle of your installation. In addition, our full color, step-by-step Installation
Manuals will walk you through the install process with exacting attention to detail.

Magnuson’s TVS2300 supercharger utilizes EATON’s latest 6th Generation supercharger rotor technology found in such industry leading performance vehicles as the
Corvette ZR-1, the Cadillac CTS-V, and the 2013 Mustang GT500. These Twin Vortices Series Superchargers feature a pair of four-lobe, high-helix rotors with 160-
degrees of overall twist that are housed in Magnuson’s patented high-flow housing. This highly efficient package requires less power to drive, delivers cooler discharge
temperatures, and is much quieter than many of its competitors.

These superchargers are all manufactured in our TS16949 certified facility – the highest ISO OEM quality certification standard in the market. Backed by a 3-year/36,
000 mile warranty this supercharger is built to last. Designed to be nearly maintenance free you won’t have to worry about anything once it is installed.



Features
  • TVS2300 Heartbeat Hybrid-roots supercharger
  • Clears the factory Camaro hood and requires no body modifications
  • TVS2300 Front-Inlet Front-Drive rotors, utilizes the same Eaton technology as the Corvette ZR1 LS9
  • Provides cooler discharge temperatures than comparable twin-screw systems
  • Advanced high-flow inlet forward design
  • Includes Twin dual-pass charge-air-coolers utilise Formula-1 racing thermal-control technology
  • Acoustically designed to minimize noise, vibration, and harshness (NVH)
  • Better air-handling characteristics than comparable superchargers
  • 100% complete bolt-on system which can be installed in one day
  • More power in a smaller package
  • Internal Bypass Valve virtually eliminates parasitic loss (uses less than 1/3 of a horsepower at 60 mph)
  • Delivers a proven increase in real world "under the curve" power
  • High thermal efficiency
  • 2.4 pressure ratio capability
  • High helix four-lobe rotors with 160 degrees of twist
  • Redesigned inlet and outlet ports
  • Utilizes all factory "push-lock" connectors
  • Displacement on demand hardware retained for improved fuel economy
  • Components have been independently tested to GM’s specification

Intercooler System
  • Twin dual-pass charge-air-coolers utilise Formula-1 racing thermal-control technology
  • Back-to-back testing verifies the intercooler system is superior
  • Quick-connect fittings for easier installation

Upgrade Options
  • Upgradable throttle body adaptor available for large throttle bodies
  • Drive pulley options available for high-boost applications

Included Components
  • 6th Generation TVS2300 Heartbeat Supercharger with integral bypass valve
  • Patented cast-aluminum high-velocity-port intake manifold
  • Twin dual-pass charge-air-coolers utilise Formula-1 racing thermal-control technology
  • Large front-mounted heat exchanger
  • All necessary fittings, lines, belts, and hardware required

Warranty
  • Standard 3-year/36,000 mile Warranty on the supercharger hardware
  • Standard 1-year Limited Warranty on electronics

Maintenance
  • Sealed supercharger rotor assembly requires no maintenance or oil change

Emissions Status
  • CARB Pending

Tools Required
  • Metric wrench set
  • 1/4in. - 3/8in. and 1/2in. drive metric socket set (Standard andamp; Deep)
  • 3/8in.and 1/2in. drive foot-pound and inch-pound torque wrenches
  • Belt tensioner wrench
  • Phillips and flat-head screwdrivers
  • 1/2in. breaker bar
  • Fuel line quick disconnect tool (included in kit)
  • Small or angled 3/8in. drill
  • Drain pan
  • Hose cutters
  • Hose clamp pliers
  • Safety glasses
  • Torque angle meter
  • Hammer
  • Compressed air
  • Blow gun air tool
  • Metric Allen socket set 3/8in. drive
  • Shop vacuum cleaner
  • Blue Loctite
  • Right Angle drill for pinning crank pulley (when required)
  • Helpful Tool: Air or electric impact wrench

Average Installation Time
  • 10-12 Hours

Size and Weight
  • Number of Boxes: 2
  • Box 1 Size: 34"x20"x16"
  • Box 1 Weight: 85 lbs.
  • Box 2 Size: 27"x14"x18"
  • Box 2 Weight: 40 lbs.
Color
$6,950.00
GLOSS
Red
$10,950.00
01-23-60-173-GLSRED
Limited Edition
9psi boost
Requires Custom
Tuning
Magnacharger 2010 - 2014 Chevrolet Camaro SS
TVS 2300
6A with L99
Details
01-23-60-173-BL
Black
Color
2010 - 2014
$7,995.00
Magnacharger Chevrolet Camaro 2013-2015
LS3 and L99 Magnuson Heartbeat Supercharger Kit
Details
01-23-62-371-BL
Black
2013 - 2015
Discontinued
$7,695.00
Magnacharger Chevrolet Camaro 2016+
Chevrolet Camaro SS 6.2L LT1 2016+
01-23-62-382-BL
Black
2016
